Indicative Price Range
₹7K–₹75Kper piece
Duplex basket with changeover valve; CS/SS
Prices vary by turbine model, OEM spec, material grade, and order quantity. The range shown reflects our typical market spread — contact us for a firm quotation.

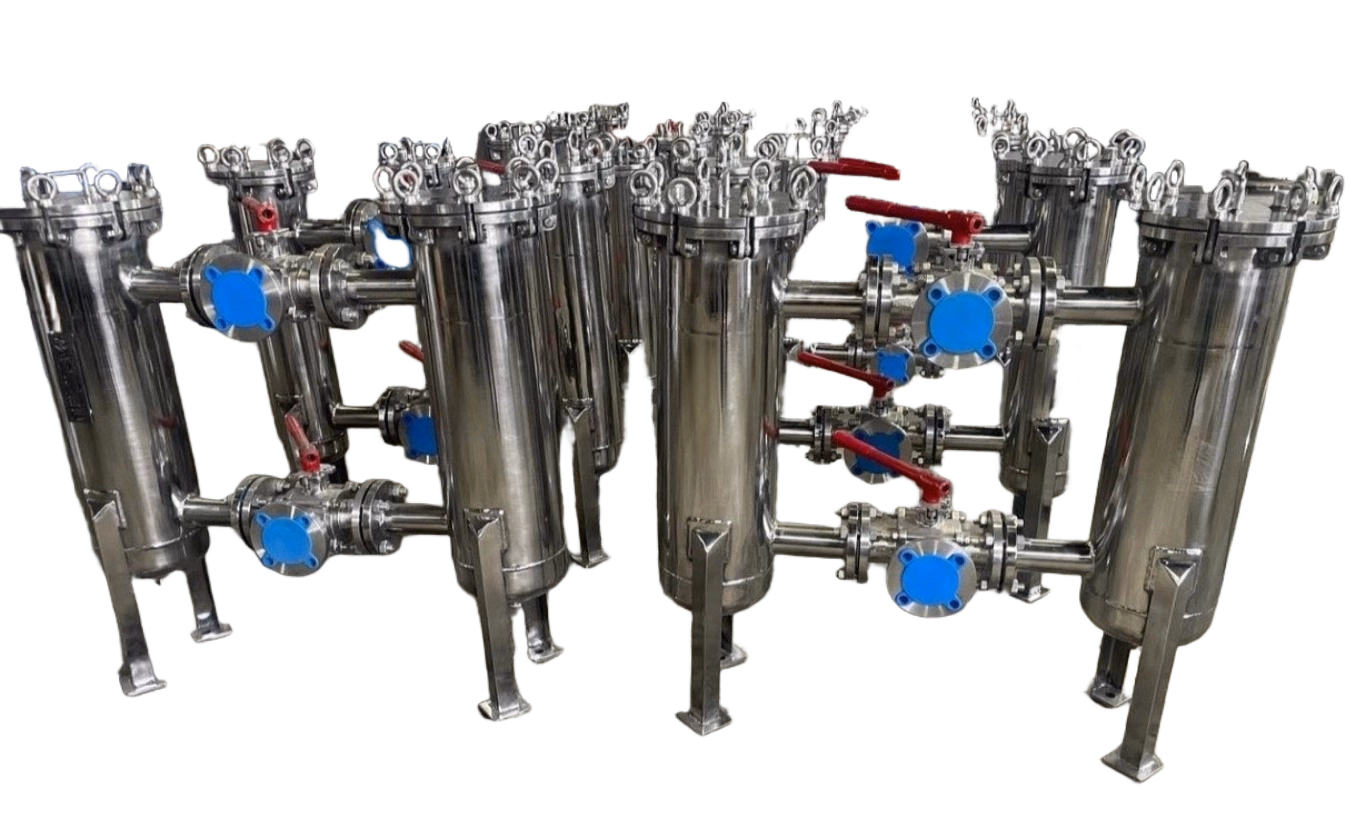

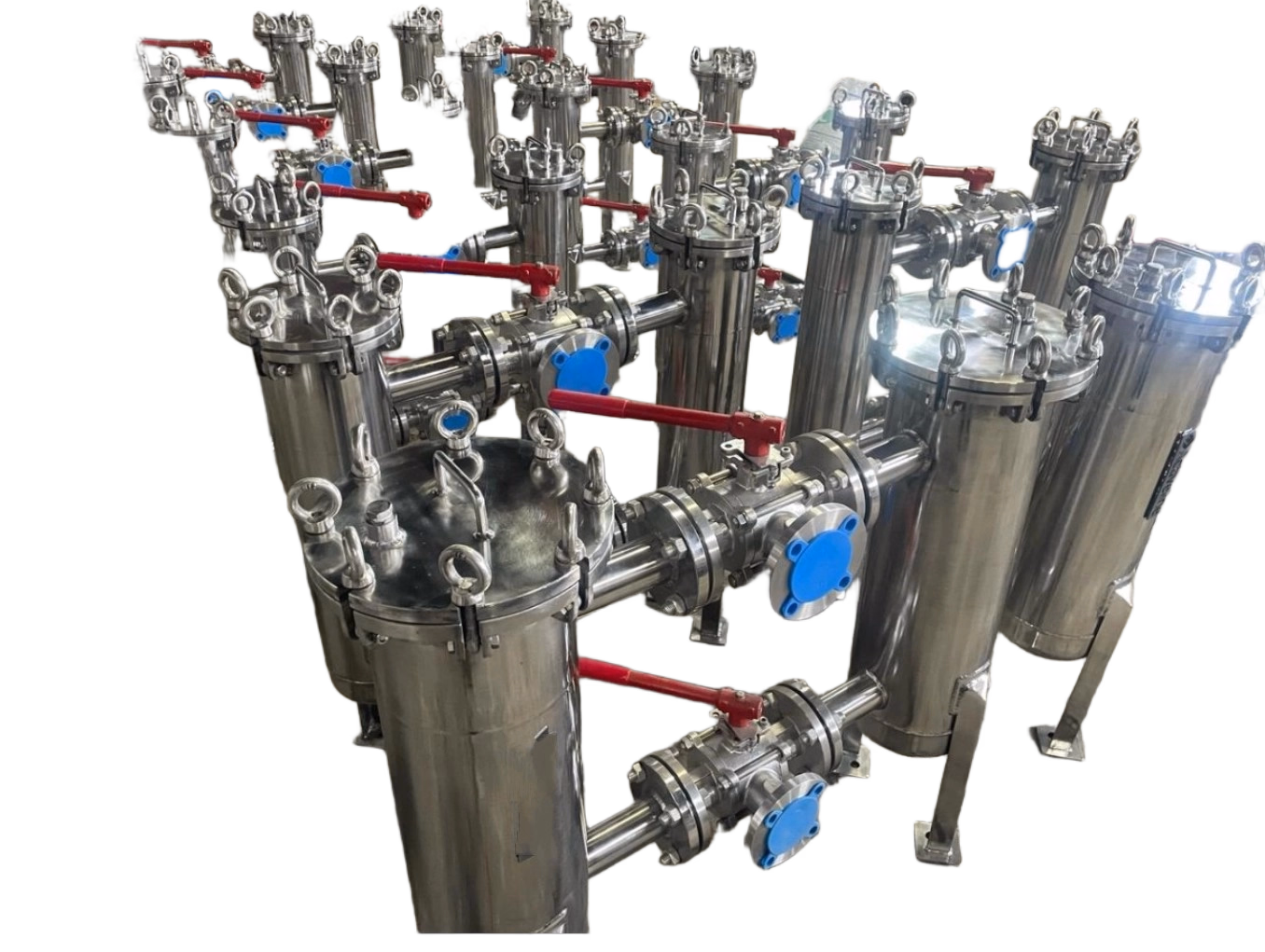

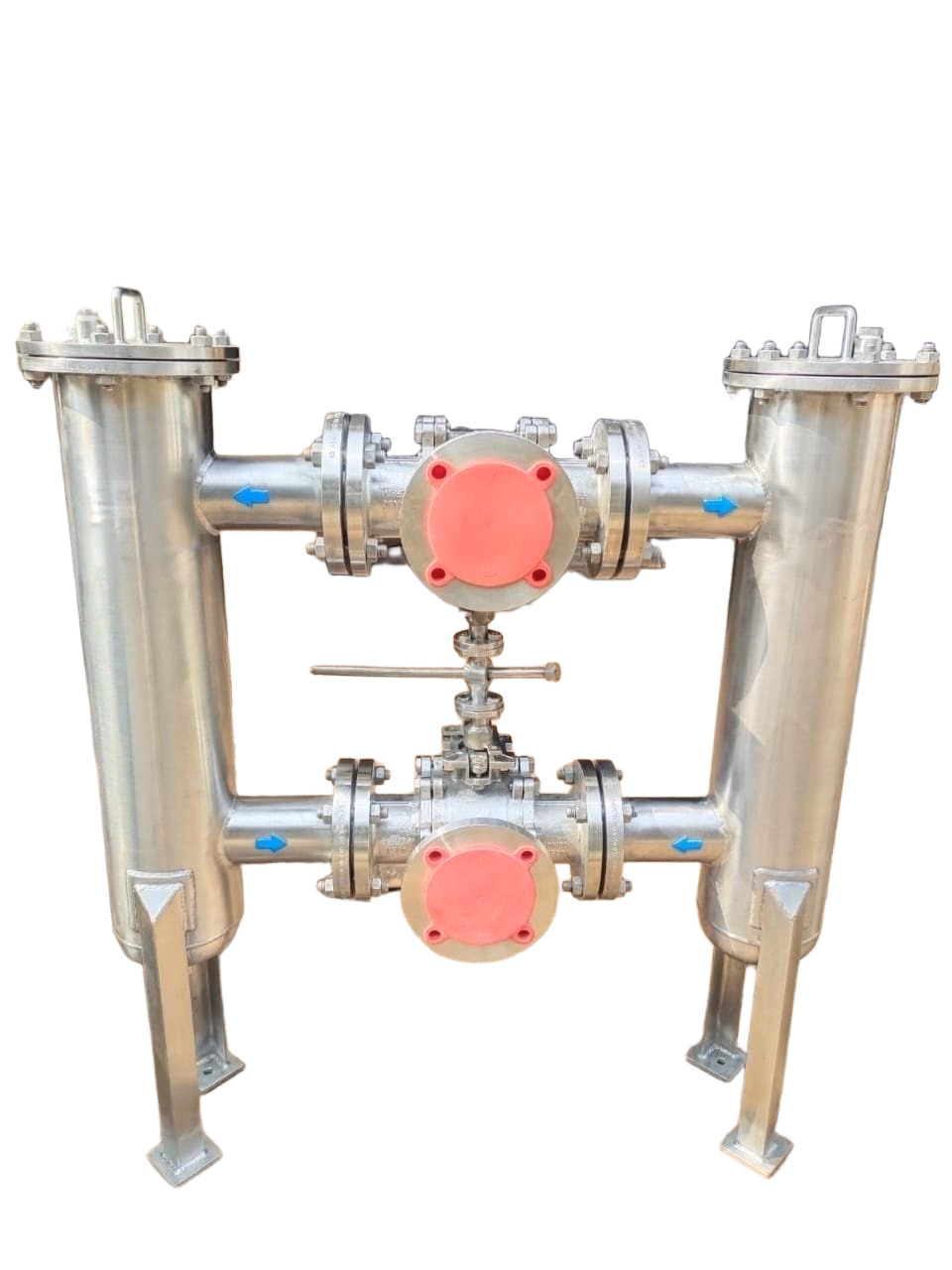

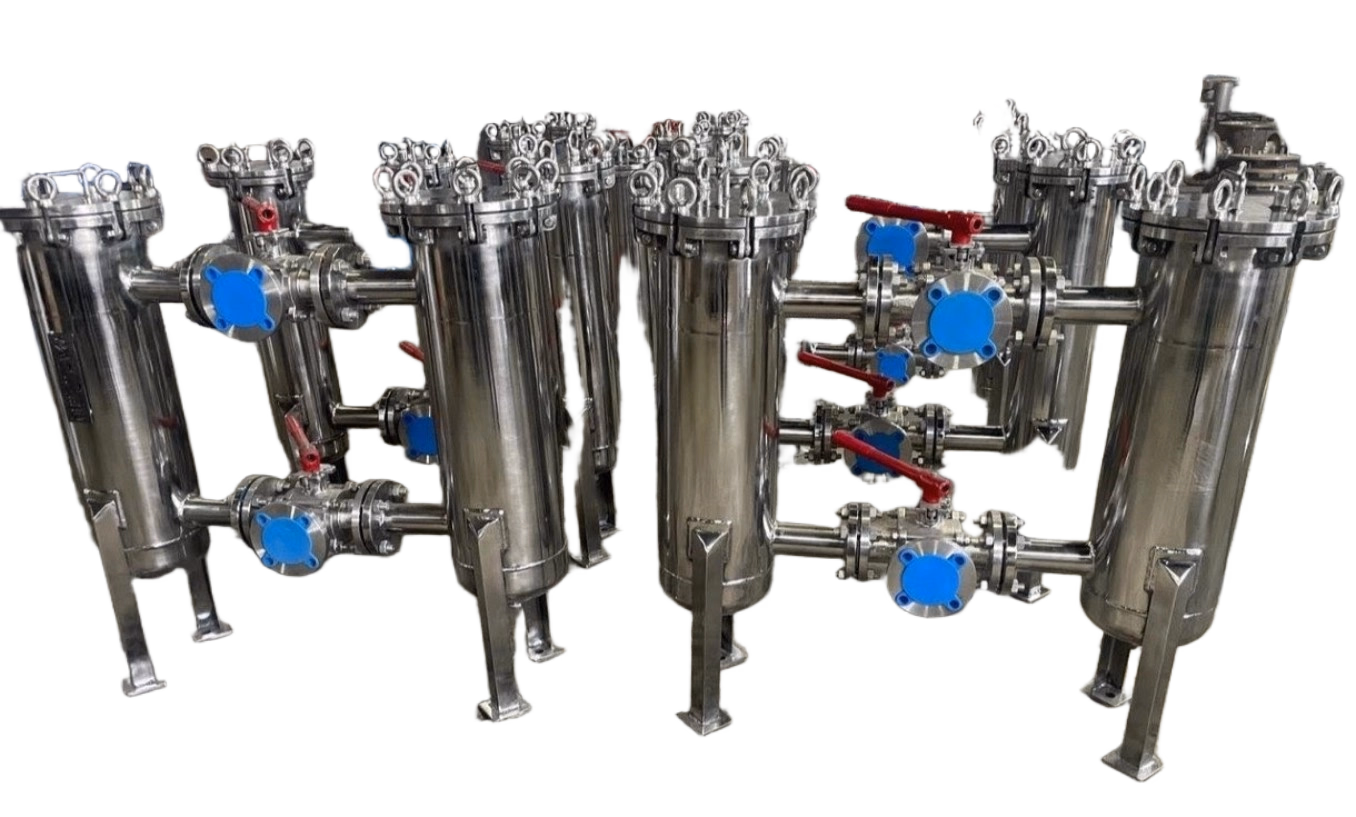

Continuous-service duplex strainer enabling basket cleaning without process shutdown. Three-way changeover valve diverts flow while dirty basket is serviced.
Continuous flow systems requiring zero-downtime operation; critical process lines where shutdown is unacceptable.
| Pressure Rating | ASME Class 125, 150, 300, 600 |
|---|---|
| Monitoring | DP Gauges available |
| Est. Price | ₹7K – ₹75KIndicative estimate · contact for firm quote |
| Lead Time | 1–3 weeks (standard); custom 3–6 weeks |
Price & Lead Time shown on every tab
Scoped to this part for a fast reply. For general inquiries, use our Contact page instead.
PDF, DWG, DXF, JPG, PNG — max 10 MB per file. Helps us quote faster.
We respond within 1 business day · No spam · Privacy Policy
Need installation or maintenance?
Our field engineers supply, install, and commission everything we sell.
View engineering servicesEngineered and fabricated to ASME VIII Div.1 and ASME B31.3 for high-pressure pipeline protection. Low pressure drop at high velocities with SS perforated basket internals. Size range DN 15 to DN 600; mesh/perforation 0.5–6 mm standard.
Application: Liquid, viscous, and gaseous media filtration in high-pressure pipelines; protects valves, meters, and process equipment.
Welded conical strainer installed between standard flanges to remove foreign matter from pipelines. Fabricated from SS 304/316 wire mesh over a perforated core, the conical geometry delivers up to 100% open area in standard sizes: maximising flow capacity at minimal pressure drop. Essential protection during turbine and pump commissioning to capture weld splatter, rust, and construction debris before it damages impellers, seals, and bearings.
Application: Pipeline protection for downstream equipment across commissioning, startup, and continuous service applications. Critical for steam turbine and pump commissioning: installed upstream of turbine steam inlet, pump suction, and compressor suction to capture weld slag, pipe scale, gasket material, and construction debris. Also used as a permanent in-line strainer where the conical geometry suits the available space or pressure-drop budget.
Cast and welded Y-type strainer for liquid and gaseous pipelines. Y-configuration allows easy blow-off cleanout without line shutdown. Size range DN 15 to DN 400; mesh 0.5–3 mm; temperature rating up to 400°C for steam service.
Application: General pipeline protection; steam, water, gas, oil, and chemical service lines protecting downstream equipment.
